Low nitrogen 10t/h oil gas fired steam boiler for industrial production

  • 1
  • 2
  • 3

Brand Name : SWET

Model Number : WNS

Certification : ISO9001

Place of Origin : Henan China

MOQ : 1set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement

Supply Ability : 2000 set

Delivery Time : 30 days after receipt of deposit

Packaging Details : Waterproof plastic packing wooden case.

Rated capacity : 10t/h

Working pressure : 1.25/1.6Mpa

Steam temperature : 194/204℃

Feed temperature : 20℃

Testing efficiency : 96.75%

Diesel consumption : 732kg/h

Application : Industrial

Certificate : ISO9001

Contact Now

Low nitrogen 10t/h oil gas fired steam boiler for industrial production

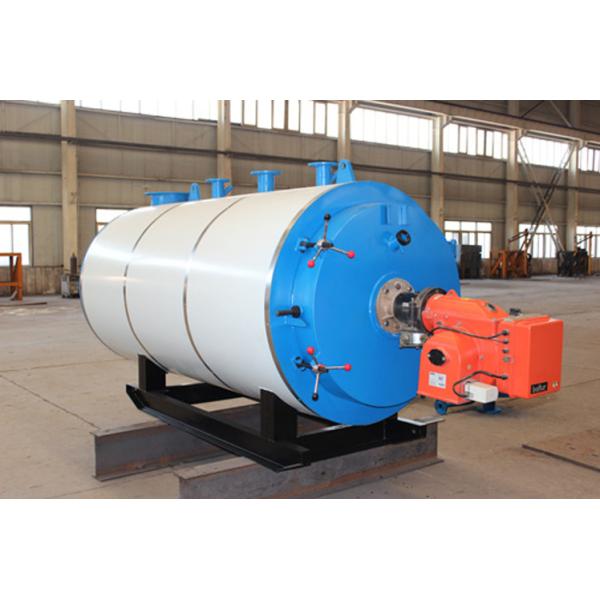

1.The WNS horizontal automatic fuel steam boiler is a horizontal quick-loading internal combustion three-pass fire tube boiler.

2.The bias furnace bile wet back structure is adopted. The second and third return smoke pipes are flushed by the high-temperature flue gas sequentially, and then discharged into the atmosphere from the rear smoke chamber through the chimney.

3.The boiler is equipped with active front and rear smokebox covers to facilitate boiler overhaul.

Technical Parameters

Model Unit WNS10-1.25(1.6)-Q(Y)
Rated capacity t/h 10
Working pressure Mpa 1.25/1.6
Steam temperature ℃ 194/204
Feed temperature ℃ 105
Testing efficiency ％ 96.75
Diesel consumption Kg/h 732.59
Gas consumption Nm³/h 837.25
Outline dimension mm(L*W*H) 6370*2812*3514
