Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler

Name: Low pressure 56 MW Gas Oil Boiler for Food Industry high efficiency oil boiler
Brand: SWET
Price: 1 USD

Quality Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler wholesale

Brand Name : SWET

Model Number : WNS

Certification : ISO9001

Place of Origin : Henan,China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000 Ton Per Year

Delivery Time : 25-30 works day

Packaging Details : Wood care plus tarpaulin packaging

Rated capacity : 5.6MW

Working pressure : 0.7(1.0)(1.25)Mpa

Steam temperature : 95（115）（130）℃

Feed temperature : 70℃

Testing efficiency : 96.57%

Outline dimension : 5950*2556*3120mm

Usage : Industrial

Structure : Fire Tube,Water Tube

Pressure : Low Pressure,High Pressure

Fuel : Oil-fired,Gas-fired

Application : food,textile,School,Machinery Industry

Contact Now

Low pressure 5.6 MW gas oil hot water boiler for Food Industry

Product Description

WNS series automatic fuel (gas) horizontal hot water boiler (utility model patent) adopts horizontal three-way wet back structure, which improves the boiler operating environment and improves the boiler combustion efficiency and service life.

The entire flue gas passage of the boiler is placed in the water, with a hot water tank in the tail and a well-designed thermal insulation outsourcing design. The smoke box seal adopts a labyrinth structure to avoid the occurrence of smoke leakage in the smoke box.

Technical Parameters

Model	Unit	WNS5.6
Rated capacity	MW	5.6
Working pressure	Mpa	0.7(1.0)(1.25)
Steam temperature	℃	95(115)(130)
Feed temperature	℃	70
Testing efficiency	％	96.57
Diesel consumption	Kg/h	541.80
Gas consumption	Nm³/h	619.2
Outline dimension	mm(LWH)	595025563120

Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler

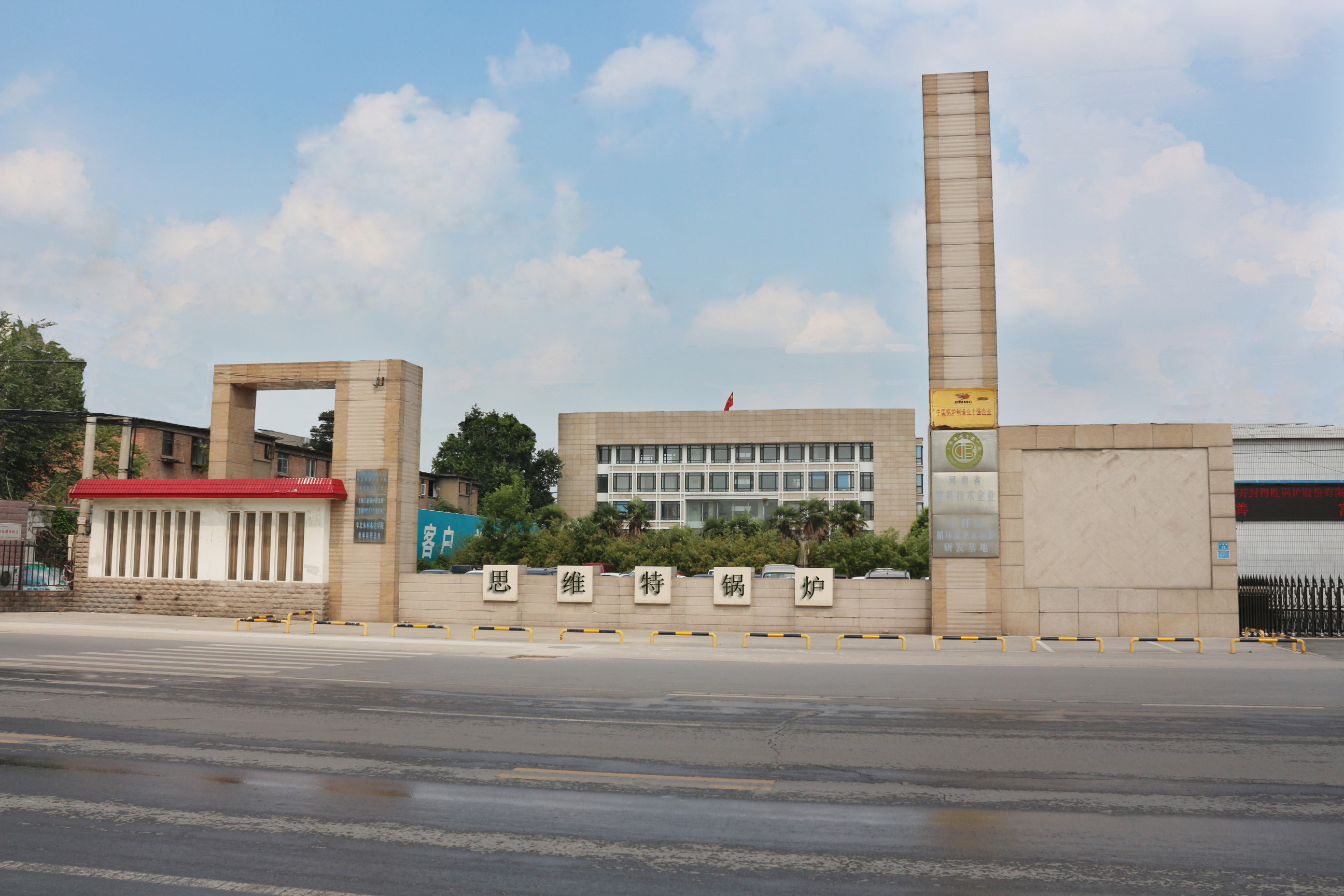

Factory Photo

Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler

Focus on the achievement of quality, Professional to create the future.
