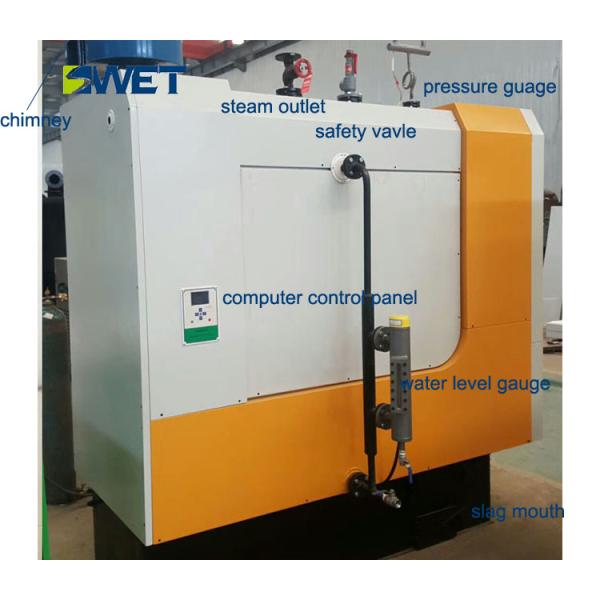

1.0mpa Low Pressure Gas Steam Boiler 500kg/H Full Automatic Control
Export european pump gas boiler low pressure
Can be used for civilian or industrial equipment ,provide hot water, dual-use equipment according to the requirements of production and pressure hot water equipment, and atmospheric water vapor.
Full automatic control.
No installation required.
Safer and more convenient.
Instructions: Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running.
Built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
Technical parameters
| Item | YDZ0.5-1.0-YQ |
| Rated evaporation | Kg/h | 500 |
| Rated pressure | Mpa | 1.0 |
| Rated steam temperature | ℃ | 184 |
| Design thermal efficiency | % | 93 |
| Water capacity | L | <29 |
| Steam outlet | DN | 32 |
| Water intake | DN | 25 |
| Drain valve | DN | 25 |
| Approx dimensions | L | mm | 2700 |
| W | mm | 1600 |
| H | mm | 2400 |
| Approx shipping weight | T | 3.7 |
| Full load gas consumption | m³/h | 37.9 |
| Full load oil consumption | kg/h | 31.3 |
FAQ
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q:How to install a boiler?
A:This type of boiler can be used without installation.
Our other types of boilers, we'll provide completed installation drawing and manual, or send engineer abroad for installation guidance.
Packaging & Shipping
Any Question, Please contact us ,we serve you 24 hours !
